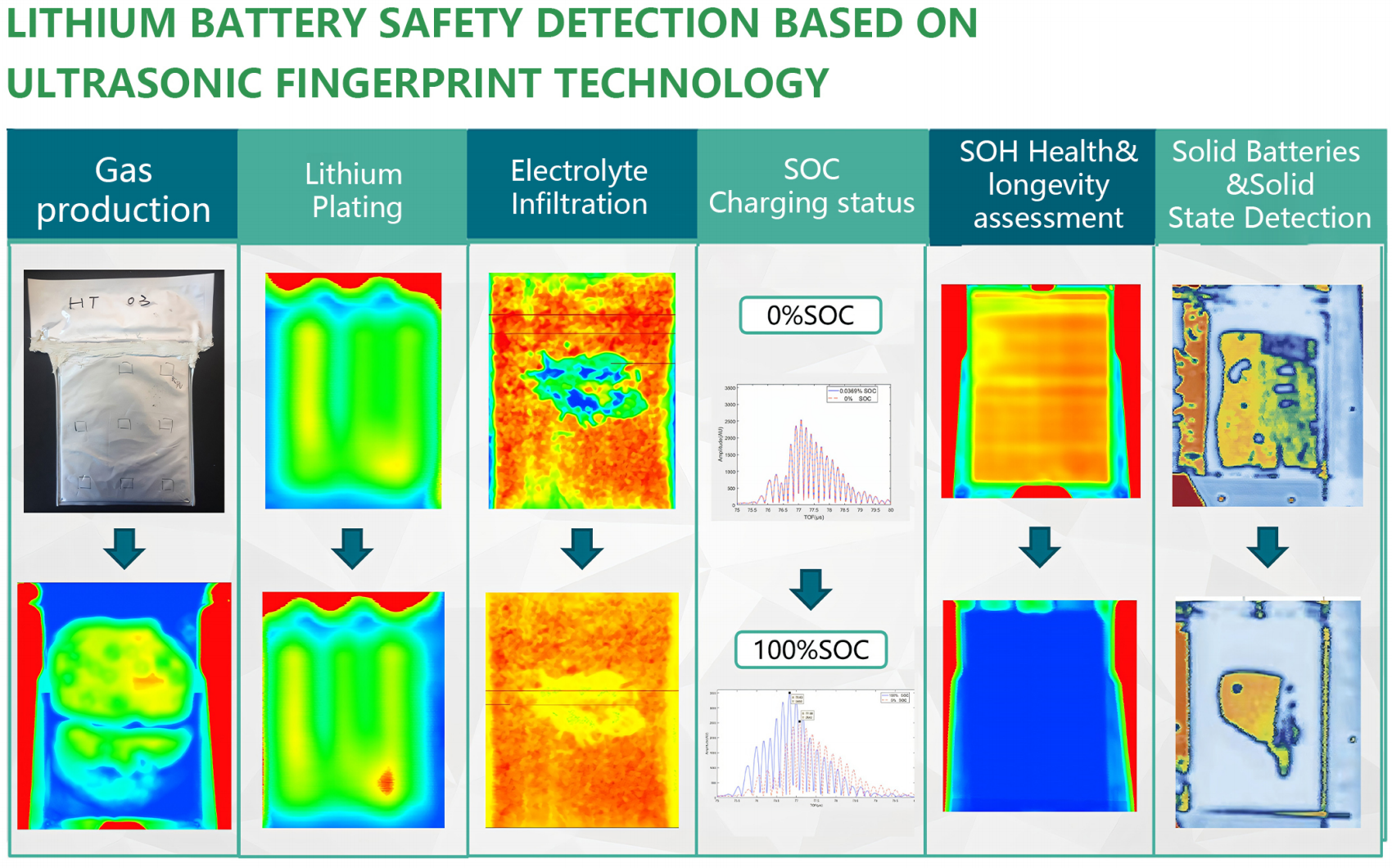

Custom-designed for lithium battery production lines, the intelligent inspection robot performs point/array scanning of each battery via air-coupled mode, with judgments based on A-scan waveforms. Supporting multi-channel expansion for capacity matching, it offers high efficiency (5-30 PPM) and a digital filing system for real-time production data monitoring/recording, ensuring full traceability. It enhances production transparency, controllability and provides accurate quality inspection data
Basic Parameters
Overall dimensions: 2050mmX600mmx500mm(Customized)
Scanning range: 1200mmx300mmx65mm(Customized)
Application scenarios: Production lines, pilot production lines
Battery types: Pouch, blade, Hard-shell
Coupling modes: air-coupled
Detection efficiency:50-60PPM
Channels: Multiple channels(Customized)

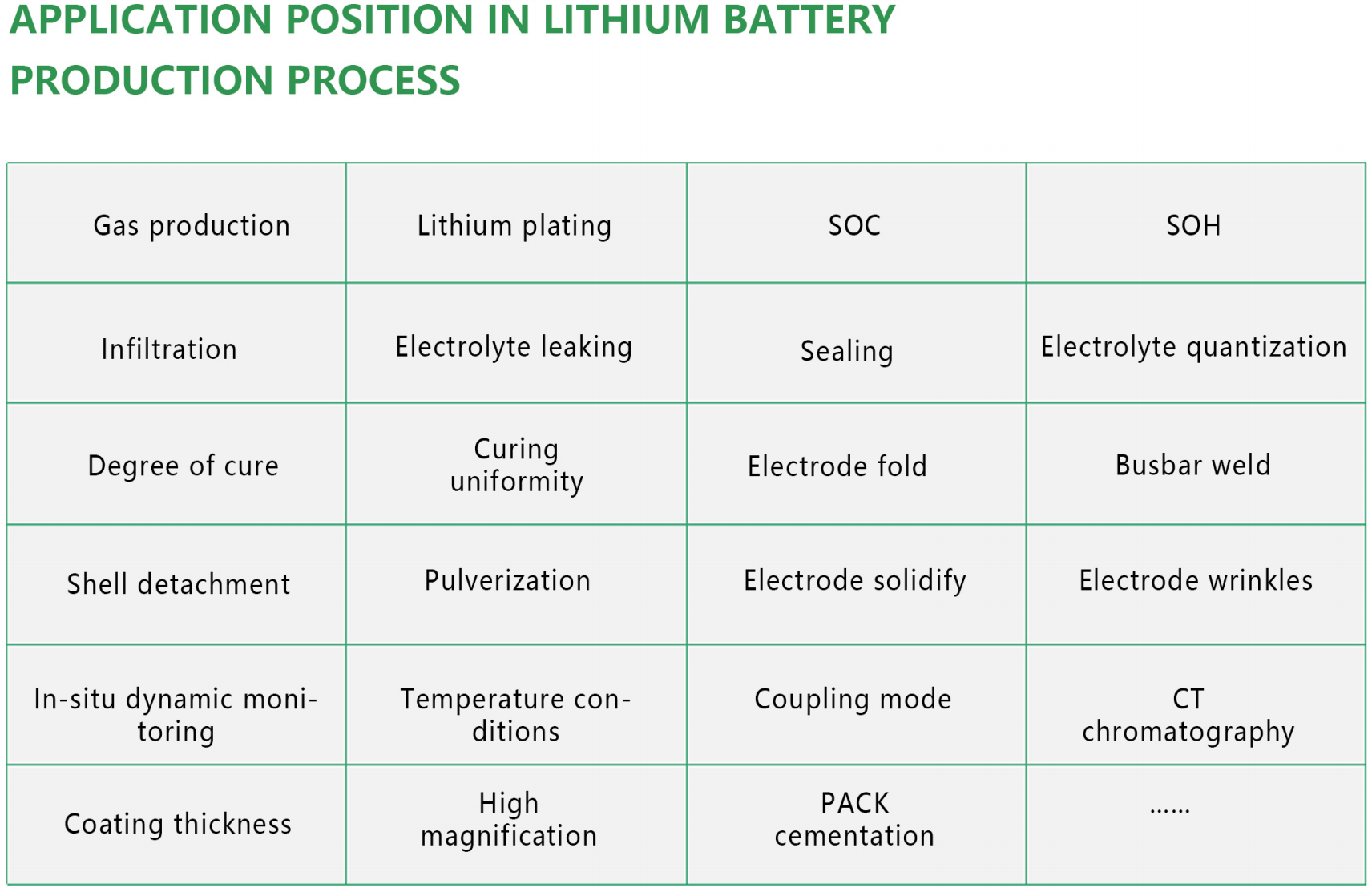

Function configuration: According to the quality control process requirements of the mass production line, select the corresponding detection functions at different process positions
