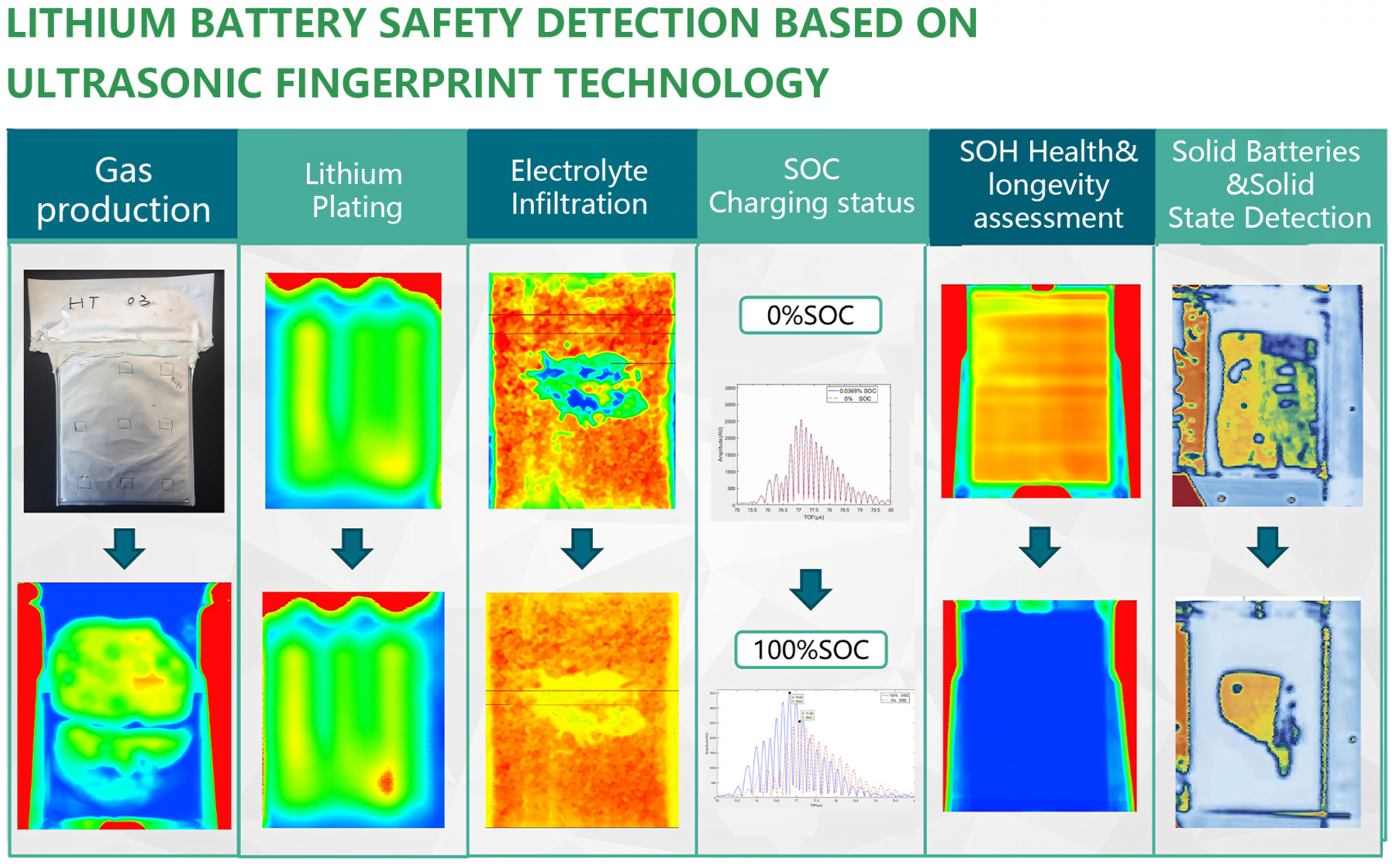

Support sub-millimeter high-precision detection with modulated excitation, supports multi-channel scanning (independent imaging), and has air-coupled/immersion modes—enabling air-coupled non-contact transmission and immersion transmission/reflection. Compatible with pouch, prismatic, blade and button batteries, it offers 19 optional functions (e.g., gas generation, lithium plating, electrolyte wetting) and optional integrated charging/discharging + high-low temperature systems.
Basic Parameters
Overall dimensions: 2500mm1500mm2100mm
Scanning range: 1200mm500mm80mm
Application scenarios: Research institute laboratories / enterprise R&D centers / mass production sampling inspection
Battery types: Pouch, prismatic, cylindrical, blade, button batteries
Coupling modes: Immersion (silicone oil) / air-coupled
Charging/discharging unit:Reserved interface, modular optional, enabling in-situ detection under different rate conditions

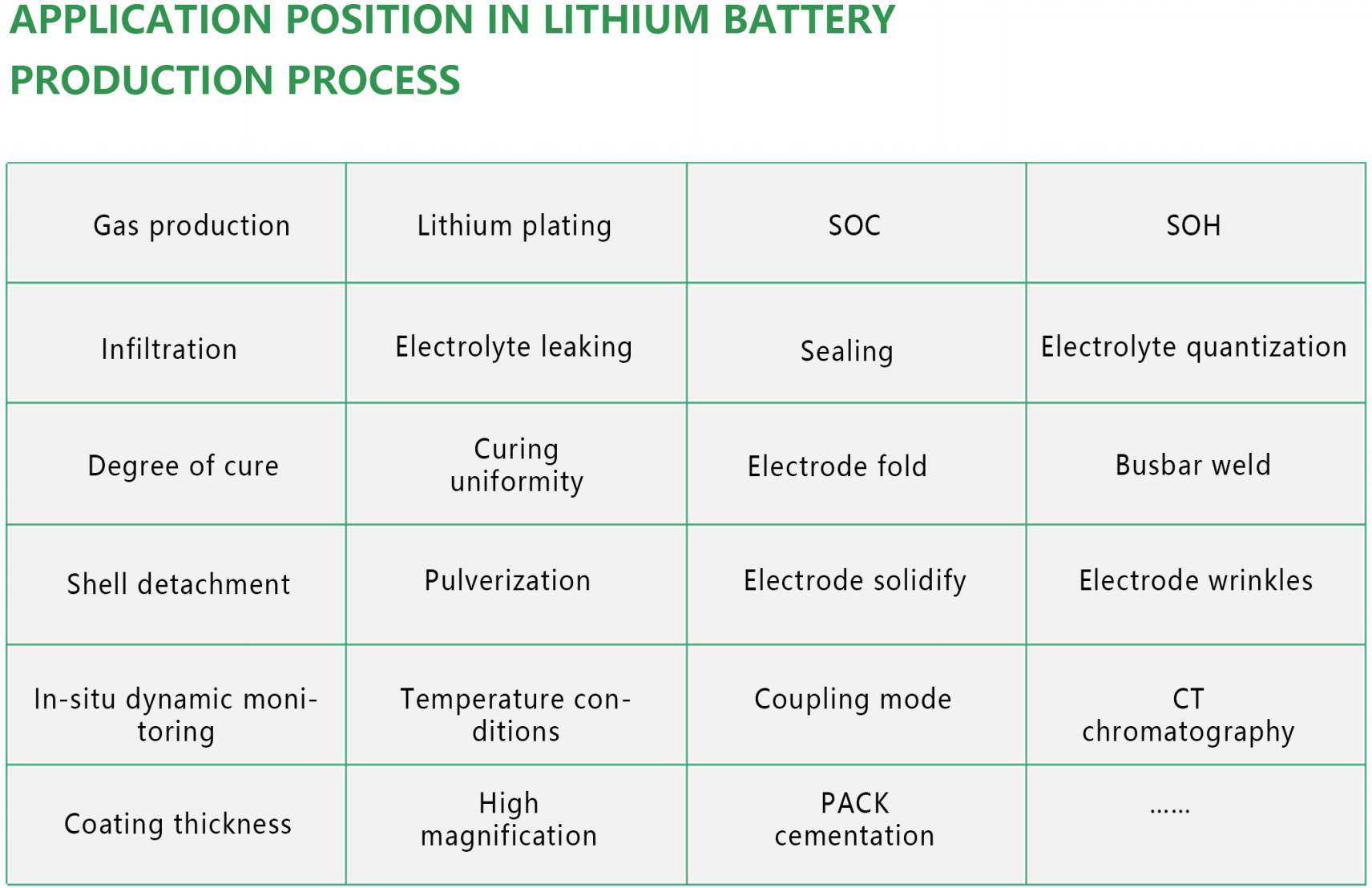

Function configuration:Gas generation detection, electrolyte wetting detection, lithium plating detection, curing degree and uniformity detection, SOC evaluation, and other optional functions



| Host | 1 |
| Probe | 2 |
| Cable | 1 |
| Fixture | 4 |
