The greatest breakthrough lies in its innovative integrated dual-mode detection design, which perfectly integrates air-coupled and immersion ultrasonic testing solutions and enables mode switching within seconds—effectively overcoming the limitations of traditional equipment caused by a single detection mode. Meanwhile, it is equipped with the same version of data analysis software as large-scale workstations, featuring four imaging modes (A-scan, B-scan, C-scan, and slicing).
Basic Parameters
Overall dimensions: 650mmx500mmx930mm
Scanning range: 300mmx300mx80mm
Application scenarios: Research institute laboratories / enterprise R&D centers / mass production sampling inspection
Battery types: Pouch, cylindrical,hard-shell,button batteries
Coupling modes: Immersion (silicone oil) / air-coupled
Charging/discharging unit:Reserved interface, modular optional, enabling in-situ detection under different rate conditions

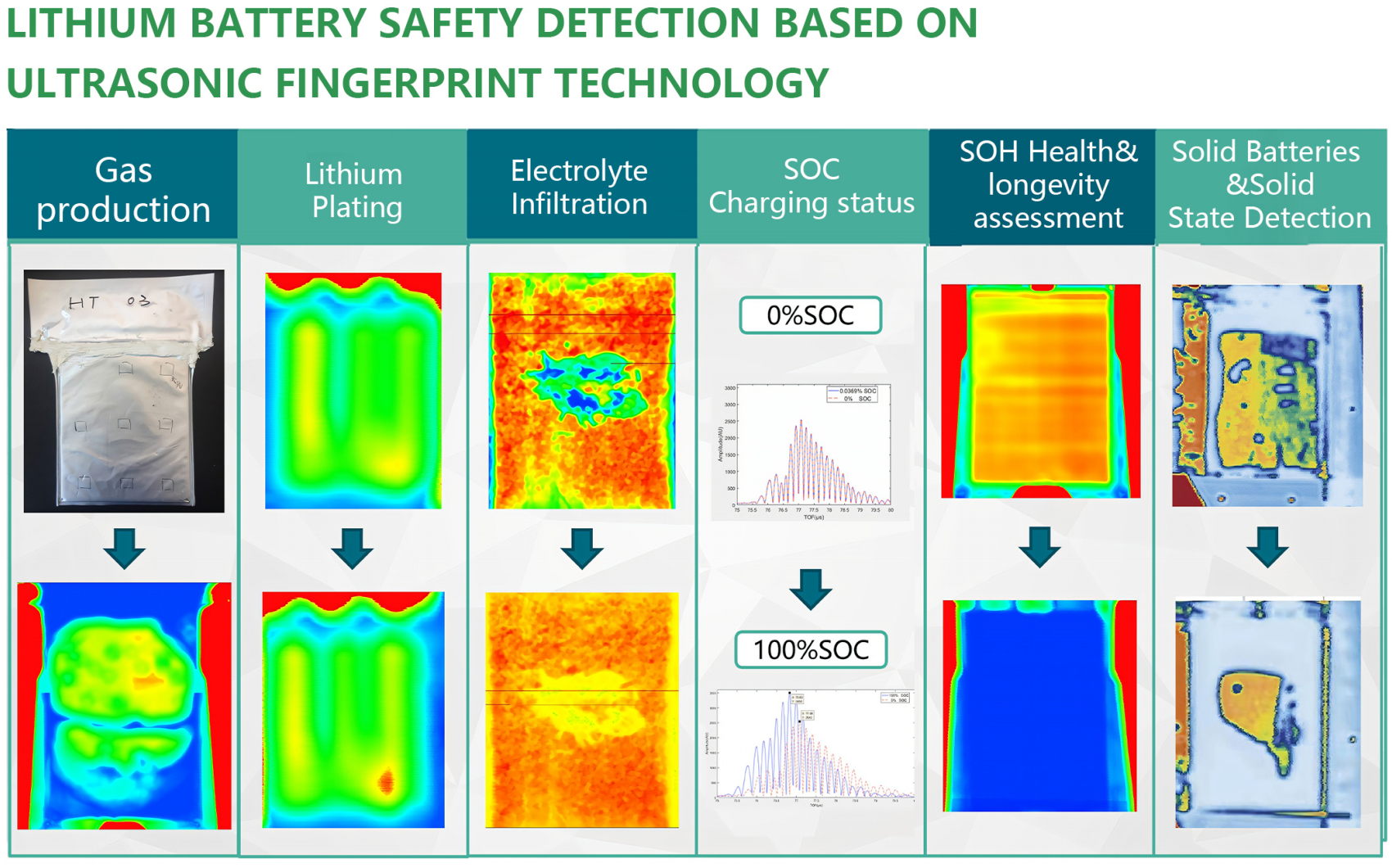

Function configuration:Gas generation detection, electrolyte wetting detection, lithium plating detection, curing degree and uniformity detection, SOC evaluation, and other optional functions



| Host | 1 |
| Cable | 1 |
| Probe | 2 |
| Fixture | 4 |
