Featuring a compact structure, reasonable layout, small size, light weight and easy portability, this flaw detector is suitable for magnetic particle detection of surface and near-surface defects in ferromagnetic materials. It applies to industries like electric power, metallurgy, petrochemical and machinery, as well as boilers, pressure vessels, pressure pipelines and various welded structures. Supporting direct AC power connection and compatible with AC/DC magnetized power supplies.
Parameter
Model: INSPEX-MPI150
Voltage:AC220V 50Hz
Temperature:-10~+40℃
Relative humidity:<80%/<80% noncondensing
Overall sensitivity:Manual grooving of A1 15/100 standard test piece is clearly displayed
AC current:AC2.2A
Magnetic field intensity:>2kA/m/>2kA/m/>2kA/m
Duty cycle:>50% Maximum excitation time 90 seconds
Lighting method:NONE/White light/UV light
Illumination/irradiance:NONE/≥2320Lux/≥5220uw/cm2
Light source window:NONE/82*22mm/82*22mm
Irradiation scope:NONE/230*110mm/230*110mm
Magnetic pole distance:0~220mm
Pole size:22*22mm

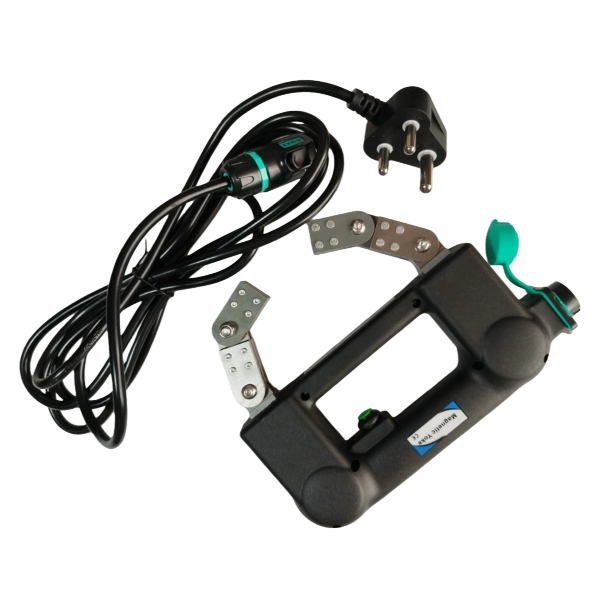

Power cord:3M
Pulling force:
(AC) ≥7.1kg (69N)Voltage 220V, one movable joint

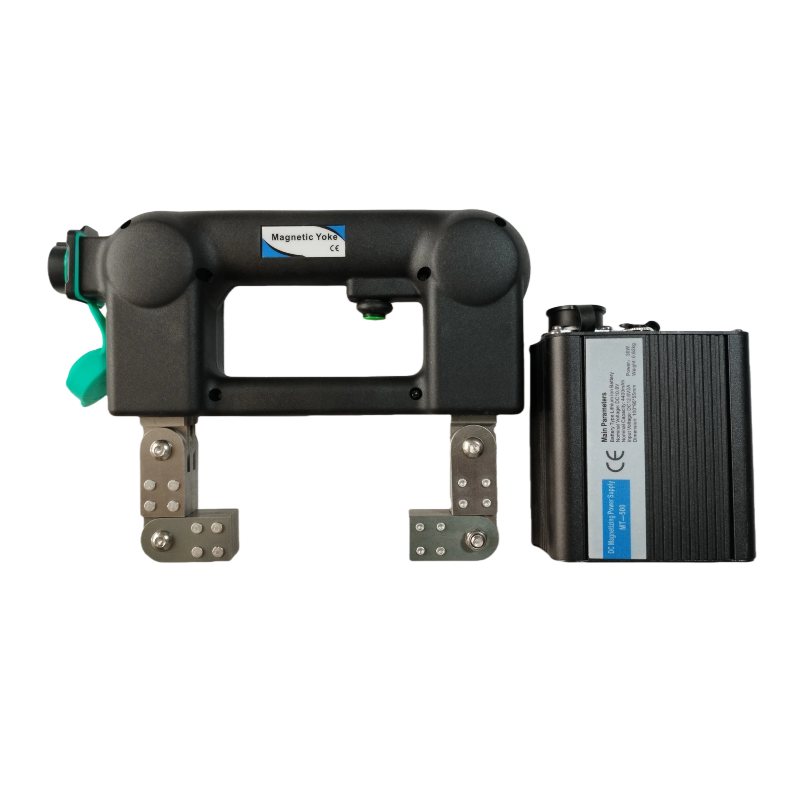

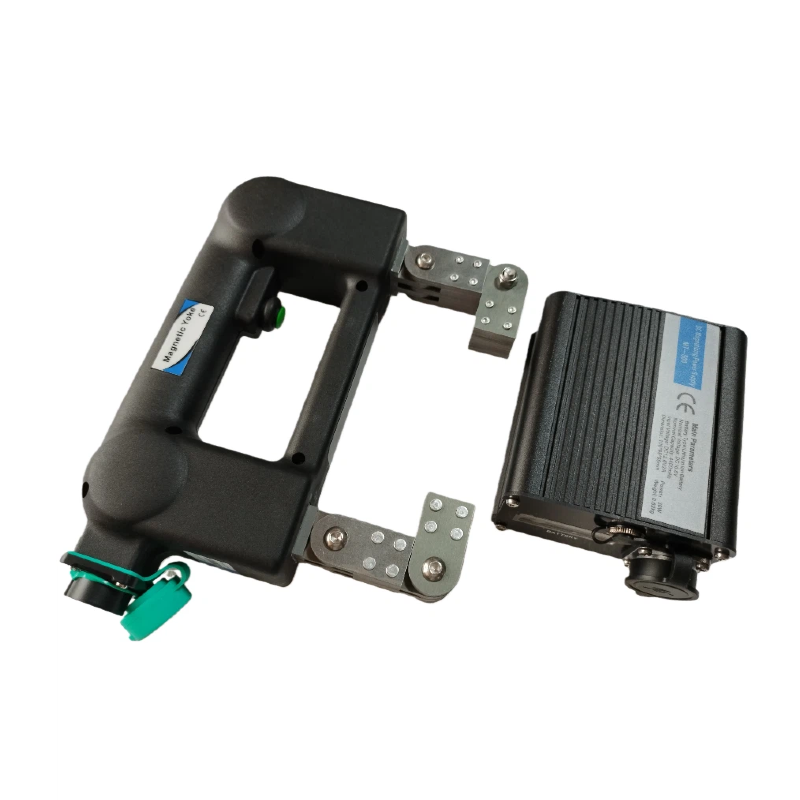

(DC) ≥22.2kg (216N) (with DC battery pack)
Dimension:230mm*125mm*45mm
Weight:2.3kg
Standards:JB/T7411-2012/ASTME1444-05/ASTME709/EN10228-1:1999/ISO9934 ASTM E 3024
| Host | 1 |
| Power cord | 1 |
| Instrument box | 1 |
| Instructions | 1 |
| Certificates and others | 1 |
| Daylight(optional) | 1 |
| UV light(optional) | 1 |
